Deep Hole Drilling Tools & Engineering Support for U.S. Manufacturers
When hole drift, poor chip evacuation, tool breakage, short tool life, or inconsistent surface finish slows production, the problem is rarely just the drill. It is the full deep hole drilling process, including tool geometry, coolant pressure, guide support, machine setup, material behavior, and cutting values.
botek® America helps U.S. manufacturers solve these challenges with precision deep hole drilling tools and application engineering support built around real production demands. As a specialized deep hole drilling tool supplier USA, botek® America supports manufacturing engineers, CNC programmers, machinists, production managers, and procurement teams that need accuracy, repeatability, coolant control, stable chip evacuation, and reduced downtime.
botek® America combines German engineering knowledge with U.S.-based support to help manufacturers improve tool life, surface finish, and process stability.
Deep Hole Drilling Processes Supported by botek® America
botek® America supports manufacturers with deep hole drilling processes designed around accuracy, repeatability, coolant control, chip evacuation, tool life, and process stability.

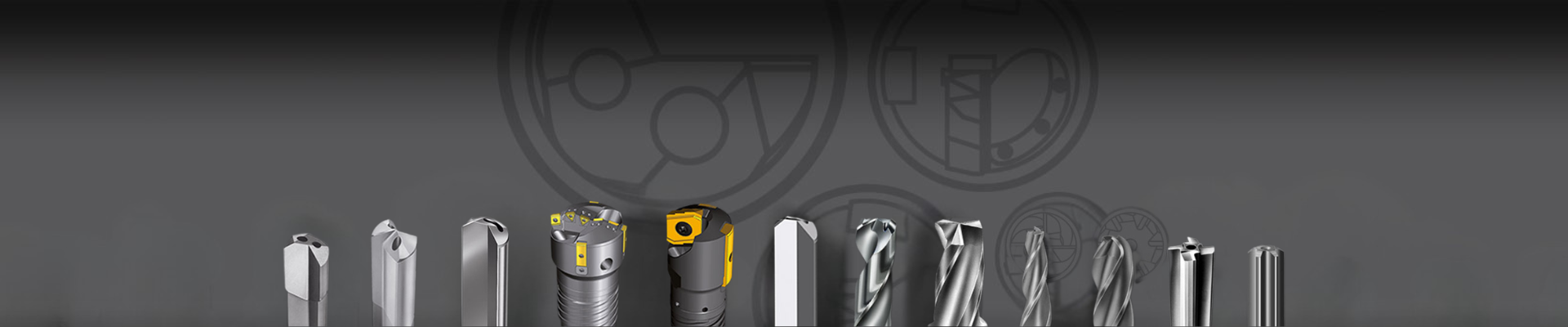

botek® America helps customers choose between gundrills, BTA drilling tools, ejector drilling tools, solid carbide drills, and custom deep hole drilling tools based on the actual application. The goal is not only to drill a deep hole, but to improve deep hole drilling surface finish, control gundrill chip evacuation, reduce hole drift, improve gundrill tool life, and support stable production.
The gundrilling process uses single flute gundrills to create small to medium diameter deep holes with strong straightness and surface finish control. Coolant flows through the tool, reaches the cutting zone, and carries chips back through the V-shaped flute. Guide pads, coolant pressure, tool geometry, and pilot hole quality directly affect hole accuracy.
The BTA drilling system is used for larger diameter deep hole drilling and high-output production. It uses external coolant supply and internal chip removal through BTA drilling heads, tubes, guide pads, counterboring tools, and trepanning tools. This system supports process stability, chip evacuation, and repeatable hole quality in demanding applications.
The ejector drilling system uses a double-tube design for deep hole drilling on conventional machine tools and machining centers. Coolant is introduced between the boring bar and inner tube, while chips are evacuated through the inner tube. It is useful when BTA drilling is not practical for the machine setup.
Deep Hole Drilling Problems We Help Solve
Deep hole drilling failures usually come from process instability, not just the tool itself. botek® America helps manufacturers diagnose problems affecting hole straightness, chip evacuation, surface finish, tool life, and repeatability.
Drill Walking and Hole Drift
Hole drift often results from poor guide support, an incorrect pilot hole, wrong tool geometry, material inconsistencies, or unstable coolant and chip evacuation. botek® America reviews the full setup to identify why the gundrill is walking and how to restore drilling accuracy.
Poor Chip Evacuation
Poor gundrill chip evacuation can cause chip packing, tool damage, poor finish, and unexpected downtime. We evaluate coolant pressure, coolant volume, chip shape, flute design, feed rates, speeds, and material-specific chip control requirements.
Poor Surface Finish
Deep hole drilling surface finish problems may come from worn guide pads, tool wear, coolant quality, vibration, machine instability, or incorrect cutting values. botek® America helps refine the tool and process for cleaner, more consistent holes.
Tool Breakage and Premature Wear
Gundrill tool breakage may be caused by coolant starvation, chip packing, misalignment, improper regrind, wrong coating, excessive feed, or poor setup.
Inconsistent Hole Quality
When hole quality varies, the process needs review. We help improve deep hole drilling process stability through validated tooling, setup, coolant, and cutting-value recommendations.
Aerospace and defense parts often involve titanium. Inconel, stainless steel, and other difficult alloys where poor chip evacuation can quickly create heat, tool wear, hole drift, or tool breakage.
Common applications include weapon barrels, ordnance components, rocket launcher tubes, naval artillery parts, actuator cylinders, landing gear components, armored vehicle hydraulics, and transmission shafts.
botek® America supports aerospace deep hole drilling with single-flute gundrills, custom tooling, guide pad selection, coolant strategy, and process optimization for applications that require tight tolerances, documentation, and repeatability.
botek®’s BTA system supports bore diameters from 7.76 mm to 700 mm and depths over 100 x D, making it suitable for demanding structural and defense components.
Medical components such as orthopedic implants, cannulated screws, surgical instruments, and precision tubes often require small-diameter holes in stainless steel, titanium, and cobalt-chrome materials.
botek® America supports medical deep hole drilling with gundrilling tools, solid carbide drills, custom tool geometry, coating recommendations, and process validation support for high-depth-to-diameter holes, often used in the 3 mm to 10 mm range for smaller precision medical parts.
Automotive and powertrain parts run in high-volume production. The drilling process must be stable. Cycle time, coolant pressure, tool life, and hole quality all matter.
Common applications include oil galleries, injector bores, transmission shafts, crank components, and powertrain passages. These parts need clean chip evacuation and repeatable hole accuracy.
botek® America supports powertrain deep hole drilling with gundrills, BTA drilling heads, regrinding, coating on new tools, and process support. The goal is simple: reduce downtime, prevent chip packing, and improve tool life.
Energy and machine engineering parts are often large and expensive. Many involve difficult materials, deep bores, and high downtime costs. A failed drilling process can waste time, tools, and parts.
Common applications include shafts, housings, rotating components, heavy equipment parts, and custom machine components. These parts may need BTA drilling, ejector drilling, counterboring, trepanning, or custom tooling.
botek® America supports these applications with custom deep hole drilling tools, process layout, in-house trials, regrinding, coating on new tools, and application engineering. The goal is to improve process stability, reduce downtime, and support reliable production.
Hydraulic and pneumatic parts often need long, straight bores. Straightness matters. Surface finish matters. Both can affect sealing, leakage control, and component life.
Common applications include hydraulic cylinders, rods, valve bodies, manifolds, and pneumatic components. These parts need controlled coolant flow and clean chip evacuation.
botek® America supports these applications with BTA drilling tools, ejector drilling tools, gundrills, guide pads, regrinding, coating on new tools, and process support. For larger bores, BTA and ejector systems can provide better stability than standard drilling.
Why Should Manufacturers Choose botek® America for Deep Hole Drilling Tools?
What botek® America Provides
botek® America distributes botek®® tooling imported from Germany, provides U.S.-based application engineering, and resharpens gundrills at our Roselle, Illinois facility.
How Does botek® America Evaluate a Deep Hole Drilling Application?
A deep-hole drilling problem cannot be solved by guessing the tool size. Hole drift, poor chip evacuation, rough surface finish, coolant failure, and gundrill tool breakage usually come from a mismatch between the tool, material, machine, and process.
The botek® Application Review Method
- 1
Part and drawing review - 2
Material and hardness review - 3
Hole diameter, depth, and tolerance review - 4
Coolant pressure and machine setup review - 5
Tool type selection: gundrill, BTA, ejector, or solid carbide - 6
Chip evacuation and surface finish risk review - 7
Cutting value recommendation - 8
Regrinding strategy and coating options for new tools - 9
Trial recommendation if needed - 10
Production support and after-sales optimization
